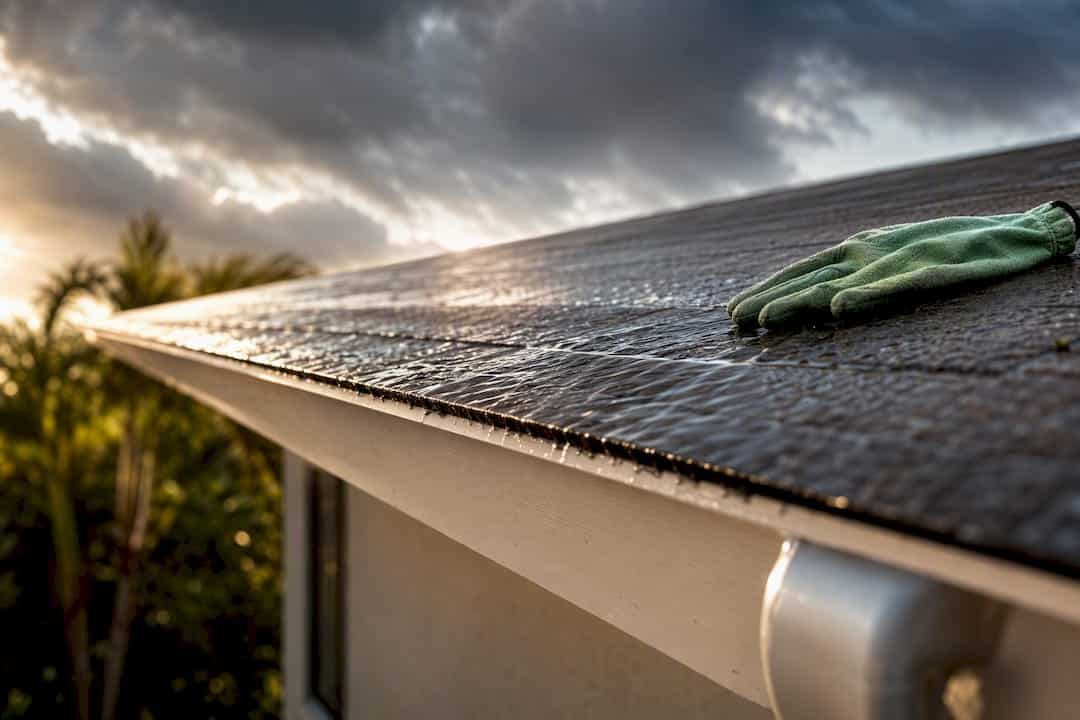

Rainwater flowing toward low slope roof drainage

Stop Overflow: Low Slope Roof Gutters for Homes, Use Right Downspouts

by Larry's Gutters | Sep 3, 2026

Gutters work fine on most low-slope roofs, but only if you get three things right: a minimum working pitch, gutter and downspout capacity sized to the actual roof area draining into them and a plan for valleys or other spots where water piles up fast. If you can’t achieve positive drainage toward the gutter with a reasonable pitch, scuppers or internal drains are a better fit than fighting a flat run.

TL;DR:

Proper pitch for low-slope gutters should be between 1/4 and 1/2 inch per 10 feet to ensure effective water drainage without visible crookedness or standing water issues.

Gutter and downspout sizes must match the roof’s effective area, with a 5-inch gutter suitable for small areas and 6-inch for larger or steeper sections, while downspouts should be rated for at least 600 to 1,200 square feet of drainage.

Downspouts should be spaced roughly every 35 to 40 feet on straight runs and placed within 3 to 5 feet of valley discharge points to prevent overflow during heavy rain.

Regular inspection and cleaning are essential, especially after storms, and design shortcomings like undersized downspouts or valley placements often cause common overflow problems.

It is advisable to have a professional evaluate roof slope, effective area, and proper downspout placement to avoid costly rework and improve long-term drainage performance.

Are Low Slope Roof Gutters a Good Fit for Your Roof?
How Do You Size Gutters and Downspouts for a Low Slope Roof?
Where Should Downspouts Go on a Low Slope Roof?
Scuppers, Internal Drains, and Built-In Gutters: What Fits a Low Slope Roof?
Installation and Testing Checklist for Low Slope Gutter Runs
What Causes Gutters on Low Slope Roofs to Fail?
What Larry’s Gutters Sees on Central Florida Low Slope Roofs
Prioritize Capacity and Placement, Not Just Gutter Width
Let Larry’s Gutters Handle the Measuring and the Math
Sources

Are Low Slope Roof Gutters a Good Fit for Your Roof?

Low slope roof gutters aren’t a compromise product. They’re a standard drainage component that just needs more careful setup than a steep-pitched roof gutter run does, since there’s less natural fall pushing water toward the downspout.

Industry practice sets a baseline pitch of 1/4 inch per 10 feet of gutter run, with an acceptable range of 1/4 to 1/2 inch per 10 feet, according to trade guidance on gutter slope and drop per foot. For a 40-foot run, that’s a 1-inch total drop from high end to low end, calculated and marked before you hang a single bracket.

Multiply the run length by the rate (10 ft segments × 1/4 in) to get total drop.
Snap a chalk line between the marked high and low points so every hanger lines up with the slope, not with the fascia board’s own level.
Too flat, and water sits in the trough long enough to breed mosquitoes, stain the fascia, and freeze in winter climates. Too steep, and the gutter looks visibly crooked and can overshoot the downspout during a downpour.

For long runs on a visually prominent elevation, Fine Homebuilding’s installer notes suggest sticking closer to the shallow end of that range, around 1/2 inch over 20 feet, when appearance matters as much as function.

How Do You Size Gutters and Downspouts for a Low Slope Roof?

Sizing starts with effective roof area, not the roof’s actual footprint. Effective area factors in the roof’s pitch, because a steeper adjacent slope sheds water faster into the same gutter than a flat one does, concentrating flow at the low point.

The USDA’s Design Guide PA-1 ties gutter size directly to maximum roof area and flags very flat slopes, in the 1/32 to 1/64 inch per foot range, as a genuine installation challenge because there’s almost no margin for error in the hang.

Working rules that hold up on real jobs:

A standard 5-inch K-style gutter handles smaller residential sections comfortably; once you’re feeding it from a large or steeply pitched adjacent roof plane, step up to 6-inch.
Downspouts follow the same logic. A 2×3 downspout is fine for roughly 600 square feet of effective roof area; once you’re past that, trade sizing guides recommend a 3×4 downspout, good to roughly 1,200 square feet.
Any run feeding more than 1,000 square feet of effective area should default to the larger outlet size rather than gambling on the smaller one clearing during a storm.
In regions that see short, intense downpours rather than steady drizzle, size up a notch. IIBEC’s drainage design guidance points to ASCE 7 storm intensity data as the reason modern code direction favors conservative secondary drainage capacity.

Check downspout capacity before gutter width. A wide gutter feeding an undersized downspout still overflows.

Where Should Downspouts Go on a Low Slope Roof?

Downspout placement matters more than most homeowners assume. Space outlets roughly every 35 to 40 feet on a straightforward run, using closer spacing in regions with frequent heavy rain events.

Valleys change the math entirely. A roof valley can deliver several times the average drainage rate of a flat section, concentrating a large volume of water into one narrow discharge point. Treat every valley outlet as a mandatory downspout location, not an optional one.

Locate every valley and roof drain discharge point on the plan before finalizing downspout count.
Place a downspout within 3 to 5 feet of each valley discharge, since routing that water sideways along the gutter trough invites overflow before it ever reaches the nearest outlet.
For unusually heavy convergence points, split the flow across two outlets rather than relying on one oversized downspout to carry it all.
Route discharge water at least several feet from the foundation using splash blocks or buried leaders, especially near valley outlets where volume is highest.

Pro Tip: Walk the roof plan with a marker before installation day and circle every valley and low point. Contractors who skip this step almost always end up retrofitting an extra downspout after the first real storm.

Scuppers, Internal Drains, and Built-In Gutters: What Fits a Low Slope Roof?

Perimeter gutters aren’t the only option when a roof is close to flat, and sometimes they aren’t the right one.

Scuppers are wall openings that let water exit through the roof edge into a downspout or leader below, common on parapet-wall roofs where a hanging gutter isn’t practical. Internal drains pull water down through the roof deck into interior piping, the standard choice on commercial-style flat roofs and some modern residential additions. Built-in gutters are membrane-lined channels integrated into the roof edge itself rather than hung from the fascia.

Scuppers are inexpensive and low-maintenance but offer limited capacity per opening, so you generally need more than one.
Internal drains handle high volume well but cost more to install and repair, since a clog means accessing interior plumbing.
Built-in gutters look clean and shed water efficiently, but a membrane failure at the deck tie-in causes hidden leaks that are expensive to trace, per flat roof drainage guidance on primary and secondary drainage requirements.

Most codes require a secondary overflow path alongside whichever primary system you choose, so budget for that redundancy from the start rather than treating it as optional.

Installation and Testing Checklist for Low Slope Gutter Runs

Getting the math right on paper doesn’t guarantee the gutter drains in real life. Test it before you call the job done.

Mark your total drop using the 1/4 inch per 10 foot rule, snap a chalk line between endpoints, and hang every bracket to that line rather than eyeballing it.
Set hangers every 24 to 30 inches on standard runs, tightening spacing in regions where ice or snow load adds weight to the trough.
Check front-lip clearance against the roof plane. SPRI’s edge system design standard addresses these edge details along with wind load performance, both relevant on low-slope roof edges exposed to uplift.
Run a hose test along the full length after hanging, watching for standing water, sagging sections, and leaks at every miter joint.
Confirm discharge distance from the foundation once water exits the downspout, not just that it exits the gutter.

What Causes Gutters on Low Slope Roofs to Fail?

Ponding and overflow are the two failure modes that show up almost exclusively on low-slope systems, and both usually trace back to pitch or capacity, not the gutter material itself.

Inspect and clean gutters at least twice a year, more often under overhanging trees. Gutter guards cut debris buildup significantly but don’t eliminate the need for periodic checks, especially at valley outlets where fine grit collects.

Standing water after a dry week points to a pitch problem, not a cleaning problem.
Staining below a seam or sagging sections signal hanger failure or an undersized gutter working overtime.
Erosion near the foundation usually means a downspout is discharging too close to the house.

If cleaning and re-hanging don’t solve recurring overflow, the design itself needs rework. Adding a downspout, upsizing the gutter, or cleaning downspouts properly on a regular schedule solves more overflow complaints than any single equipment upgrade.

What Larry’s Gutters Sees on Central Florida Low Slope Roofs

Florida’s tropical storm season pushes a lot of roofs past their theoretical drainage capacity in a single afternoon. On homes with large low-slope sections, our crews often upsize to 6-inch gutters or add a second downspout at valley convergence points before the first named storm of the season even forms.

Roof-to-gutter transitions on additions and porch extensions are where we catch the most design gaps. Get that tie-in wrong and the gutter looks fine right up until the first heavy squall line finds the seam.

Built-in or membrane gutter tie-ins need careful attention to flashing details similar to other roof penetrations, and humid climates may require more frequent maintenance than the typical twice-a-year schedule.

Prioritize Capacity and Placement, Not Just Gutter Width

If you only fix one thing, fix downspout density and placement before you upsize gutter width. Confirm pitch, count your downspouts against effective roof area, then run the hose test yourself. Measuring pitch on a single-story ranch is a reasonable DIY task; routing around valleys or a multi-plane low-slope roof is where hiring a professional pays off. Some roofs, by code or structural limit, need scuppers or internal drains instead of gutters at all.

— Results

Let Larry’s Gutters Handle the Measuring and the Math

Professional gutter service providers are the alternative to guessing at pitch and downspout count yourself: their crews measure effective roof area, check existing slope, and recommend gutters versus scuppers or internal drains before any metal goes up, so you’re not paying to redo a design mistake later.

Larrysgutters

On homes with low-slope sections, an onsite assessment typically flags at least one undersized downspout or a valley outlet placed too far from the discharge point, exactly the kind of gap that causes overflow during a heavy summer storm. Our services cover seamless gutter installation, gutter guard installation, and downspout routing sized to your actual roof, not a generic template. If your low-slope roof has been overflowing or ponding, request a free assessment and get a downspout installation plan built around your roof’s real drainage load.
