TL;DR:
- Proper roof-to-gutter transitions prevent water damage by ensuring correct drip edge installation, sealed gutter aprons, and properly pitched, sized downspouts. Regular inspections and routine maintenance are essential to catch failures early and preserve the system’s integrity. Installing seamless gutters with integrated transition components maximizes durability and efficiency in managing Florida’s heavy rainfall.
A proper roof-to-gutter transition is defined as the controlled handoff of rainwater from your roof surface, across the drip edge, and cleanly into the gutter trough. When this handoff fails, water runs behind the gutter, soaks the fascia board, and eventually damages your foundation. These roof to gutter transition tips cover every critical step: drip edge installation per IRC Section R905.2.8.5, gutter apron selection, correct pitch, downspout sizing, and routine maintenance. Get each element right and your drainage system will handle even Florida’s heaviest downpours without a drop going where it shouldn’t.
1. Install drip edges correctly for clean water flow

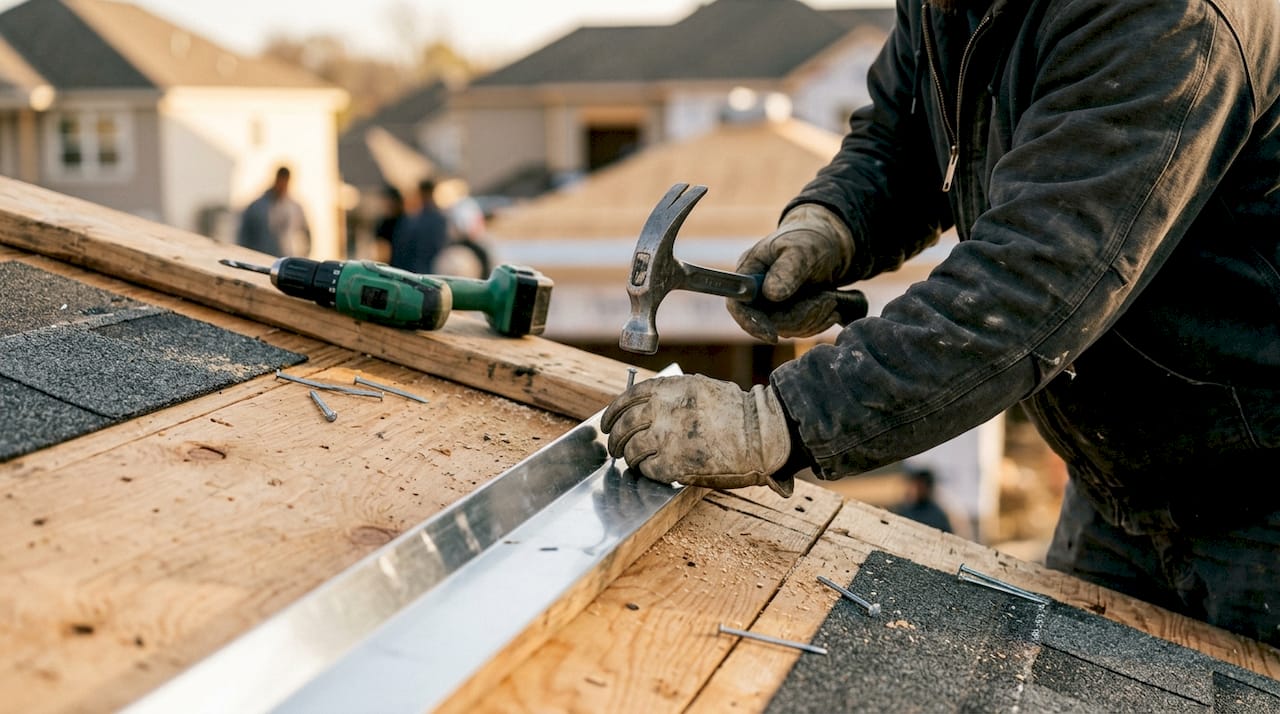

The drip edge is the first line of defense in any roof-to-gutter transition. It is a metal flashing strip fastened along the roof’s eave and rake edges that guides water off the roof deck and into the gutter. Without it, water wicks under shingles and soaks the wood decking beneath.
IRC Section R905.2.8.5 mandates that drip edge be mechanically fastened at 12-inch intervals and extend at least 1/4 inch below the roof deck sheathing. That extension is what physically directs water into the gutter rather than behind it.
Two drip edge profiles serve different situations:
- Type C (standard drip edge): A simple L-shaped profile used on most new installations where the gutter sits close to the roof edge.
- Type F (gutter apron): An extended lower flange that reaches further into the gutter trough. Use this on retrofit jobs or wherever a gap exists between the roof edge and the gutter.
Installation sequence matters as much as the profile you choose. Drip edge at eaves goes under the underlayment so water cannot penetrate beneath the roofing layers. At rake edges, the drip edge goes above the underlayment. Reversing this sequence is one of the most common and costly mistakes on DIY roofing jobs.
Pro Tip: When replacing shingles, always pull the first course and check whether the eave drip edge sits under the underlayment. If it doesn’t, re-sequence it before laying new shingles. Fixing it later means removing finished work.
2. Use gutter aprons and flashing to seal the junction
A gutter apron, also called a Type F drip edge, bridges the gap between the roof edge and the gutter trough. Its vertical leg drops directly into the gutter, creating a physical water path that leaves no room for runoff to escape behind the gutter.
Proper overlap is non-negotiable. Flashing sections must overlap by a minimum of 2 inches, and the gutter apron must sit behind the drip edge at all times. Skipping this overlap creates a gap at the seam where water enters during heavy rain and travels straight to the fascia.
“Gutter aprons and reverse flashing are functional enhancements, not just aesthetic. Securing gaps where water tends to wick improves system durability cost-effectively.” — Reverse Flashing Explained
Common errors that cause water intrusion at this junction include:
- Installing the gutter apron in front of the drip edge instead of behind it
- Using flashing sections with less than 2 inches of overlap at joints
- Failing to seal the top edge of the apron against the roof deck
- Skipping the gutter apron entirely on retrofit jobs where a visible gap exists
For retrofit situations, Type F drip edge allows installation without removing the existing gutter. You slide it up under the shingles and over the back of the gutter. This single upgrade eliminates most cases of water dripping behind gutters on older homes. Learn more about how these components work together in this guide to gutter flashing.
3. Pitch gutters at the right angle for drainage
Gutter pitch is the slight downward slope built into every gutter run so water flows toward the downspout rather than pooling. The recommended pitch is approximately 1/4 inch for every 10 feet of gutter length.
This slope creates a practical challenge. As the gutter drops toward the downspout, a gap opens between the back of the gutter and the drip edge. That gap is exactly where water escapes if no gutter apron is in place. A gutter apron or cheater strip closes the gap while maintaining the pitch.
Getting the pitch right requires attention to three details:
- Mark your slope before hanging. Snap a chalk line from the high end to the downspout end at the correct drop. Hang the gutter to that line, not to the fascia board, which may not be level.
- Check gutter height against the drip edge. The back of the gutter must sit just below the drip edge extension. If it hangs too low, water overshoots the gutter. If it hangs too high, water backs up under the shingles.
- Space downspouts to control pitch extremes. One downspout per 600 square feet of roof area keeps each gutter run short enough to maintain a manageable pitch without excessive drop at the low end.
Pro Tip: Use a 4-foot level and a tape measure to verify pitch every 10 feet as you hang the gutter. A quick check during installation takes two minutes. Correcting a sagging gutter after the fact takes two hours.
4. Size and place downspouts to handle the load
Downspout sizing directly determines whether your gutter system can evacuate water fast enough during a heavy storm. Undersized downspouts back up the entire gutter run, causing overflow at the transition point and defeating every other installation improvement you’ve made.
A 3×4-inch downspout handles approximately 1,200 square feet of roof area at a 4-inch-per-hour rainfall rate. A 4×5-inch downspout handles approximately 2,400 square feet. Florida’s rainfall intensity regularly exceeds 4 inches per hour during summer storms, so sizing up is rarely a mistake.
Placement and maintenance of downspouts matter just as much as size:
- Position downspouts at the lowest point of each gutter run. Water always flows to the lowest point, so the downspout must be there to receive it.
- Add a second downspout on runs longer than 40 feet. This reduces the total pitch drop required and keeps water moving evenly across the full run.
- Flush downspouts twice a year with a garden hose. Debris compacts at the elbow where the downspout turns away from the wall. A blocked elbow backs up the entire system.
- Install downspout strainers at the gutter outlet. These catch leaves before they enter the downspout and are far easier to clean than a clogged pipe.
Proper gutter installation techniques always account for downspout placement before the first bracket goes up. Deciding downspout locations after the gutter is hung often forces compromises on pitch and alignment.

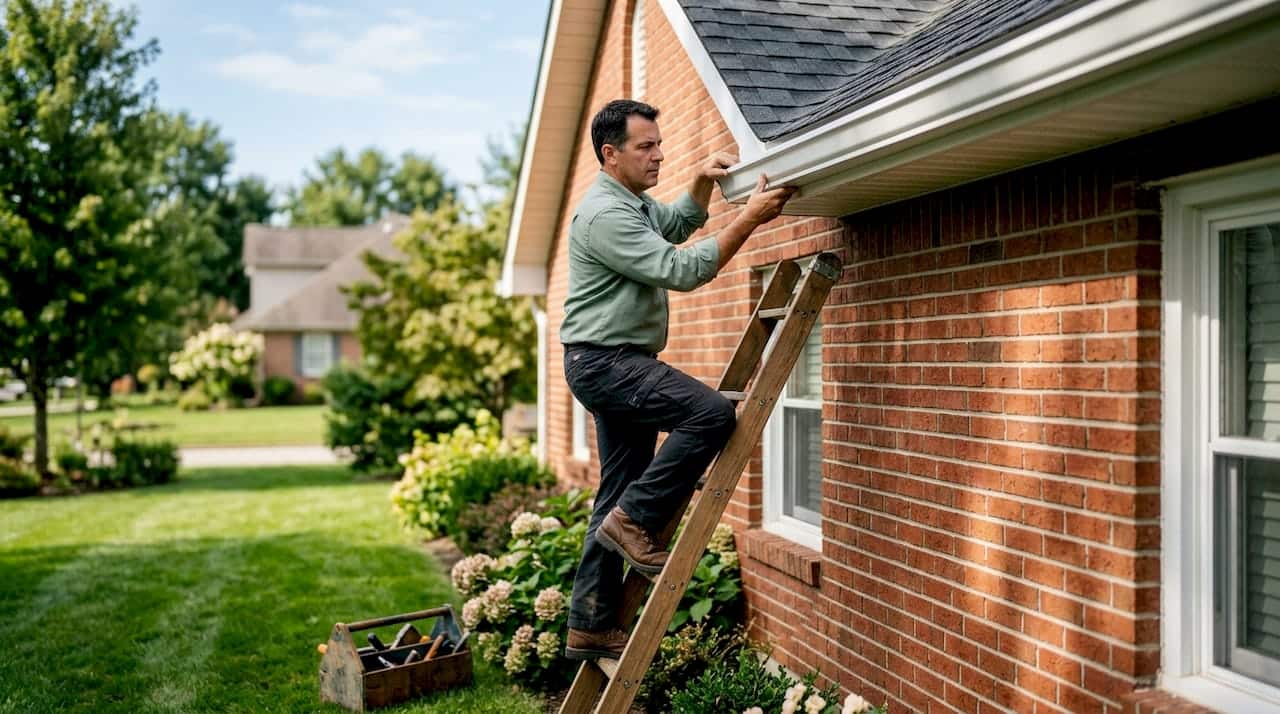

5. Inspect and maintain the transition zone regularly
Routine inspection catches transition failures before they become expensive repairs. Water damage to fascia boards, soffits, and foundations starts small and stays invisible until the repair bill is large.
Experts recommend inspecting the full water path from shingles to drip edge to gutter trough rather than looking at components in isolation. A leak behind the gutter is rarely a gutter defect. It is almost always a transition failure at the drip edge or gutter apron.
Signs that the transition zone needs attention:
- Water stains or paint peeling on the fascia board directly behind the gutter
- Visible gap between the back of the gutter and the roof edge
- Drip edge that has pulled away from the roof deck or lost fasteners
- Gutter sections that have sagged or shifted, breaking the pitch
Pro Tip: Run a garden hose along the roof edge during dry weather and watch where the water goes. If any water runs behind the gutter rather than into it, you have found your transition failure before rain does.
Gutter cleaning advice from professionals consistently points to twice-yearly cleaning as the minimum for Florida homes, where oak pollen, pine needles, and storm debris accumulate fast. Clean gutters also let you inspect fasteners and flashing without debris blocking your view. Check every hanger bracket for tightness and look for rust or corrosion on the drip edge while you’re up there.
Key takeaways
The most effective roof-to-gutter transition requires correct drip edge installation, a properly overlapped gutter apron, accurate pitch, and adequately sized downspouts working together as one system.
| Point | Details |
|---|---|
| Drip edge sequence | Install under underlayment at eaves and above it at rakes to block water penetration. |
| Gutter apron overlap | Maintain a minimum 2-inch overlap at all flashing joints to prevent water intrusion. |
| Correct pitch | Slope gutters 1/4 inch per 10 feet toward downspouts and use a gutter apron to close any resulting gap. |
| Downspout sizing | Match downspout size to roof area: 3×4-inch for up to 1,200 sq ft, 4×5-inch for up to 2,400 sq ft. |
| Routine inspection | Trace the full water path twice a year and address fascia staining or drip edge gaps immediately. |
What I’ve learned from watching transitions fail
Most homeowners treat the roof and the gutter as two separate projects. That thinking is exactly what causes the most expensive water damage I see. The transition zone between them is where the system either works or fails, and it gets almost no attention during either installation.
The single most common mistake is installing a new gutter on an old drip edge that was never properly set. The drip edge may be in front of the gutter instead of behind it, or it may have pulled away from the roof deck over years of thermal expansion. The new gutter looks fine from the ground. The water still runs behind it.
Replacing gutters at the same time as the roof eliminates this problem entirely. When both are installed together, the drip edge extension, gutter height, and apron overlap are all set to work as one unit. When they are installed years apart by different contractors, handoff failures are almost guaranteed.
The other mistake I see constantly is skipping the gutter apron on retrofit jobs because it requires sliding metal under the shingles. Homeowners worry about disturbing the roof. The reality is that a properly installed Type F gutter apron does not damage shingles and provides the only reliable fix for a gap at the roof-to-gutter junction. Skipping it means the gap stays, and the fascia keeps rotting.
Preventive maintenance costs a fraction of fascia replacement or foundation repair. Inspect the transition zone every spring and fall. Fix small problems while they are still small.
— Larrysgutters
Seamless gutters that fit your roof from day one
Seamless gutters eliminate the joints where leaks most often start, and they align with drip edges more consistently than sectional systems because they are cut to the exact length of each run on-site.
Larrysgutters installs seamless gutters in Central Florida with correct pitch, proper drip edge integration, and downspout placement sized to your roof area. Every installation accounts for the transition zone from the start, not as an afterthought. If you want to know whether the upgrade is worth the cost, the breakdown of seamless gutter value covers the long-term math clearly. Contact Larrysgutters for a free quote and get a system built to handle Florida rain from the first storm.
FAQ
What is the correct drip edge installation sequence?
At eaves, drip edge goes under the underlayment. At rake edges, it goes above the underlayment. Reversing this sequence allows water to penetrate beneath the roofing layers.
How do I stop water from running behind my gutters?
Water running behind gutters is almost always caused by a missing or misaligned drip edge or gutter apron. Installing a Type F gutter apron that sits behind the drip edge and drops into the gutter trough corrects the problem.
What gutter pitch is recommended for proper drainage?
The standard pitch is 1/4 inch per 10 feet of gutter run toward the downspout. This slope keeps water moving without creating excessive drop at the low end.
How many downspouts does my roof need?
One downspout per 600 square feet of roof area is the standard recommendation. Larger roofs or long gutter runs benefit from additional downspouts to reduce pitch extremes and prevent overflow.
How often should I inspect the roof-to-gutter transition?
Inspect the full water path, from shingles to drip edge to gutter, at least twice a year. Spring and fall inspections catch debris buildup, loose fasteners, and flashing gaps before they cause fascia or foundation damage.
